Have you ever wondered how to improve vehicle management and safety? Telematics boxes are the answer. These devices offer real-time tracking, driver behavior monitoring, and fuel efficiency optimization.In this post, we’ll guide you through the step-by-step process of installing a telematics box. You’ll learn how to ensure a seamless installation for optimal performance and functionality.

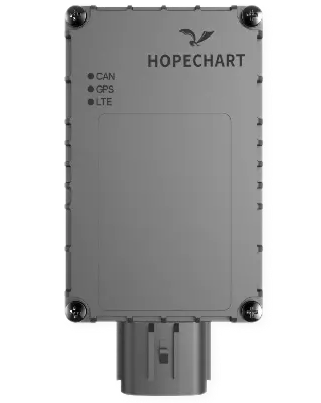

A telematics box is a device installed in vehicles to monitor and collect real-time data. It helps businesses and fleet management platform track vehicle location, driver behavior, and vehicle performance metrics. By gathering insights from the vehicle’s sensors and GPS system, telematics boxes provide valuable information to optimize routes, improve safety, and reduce costs.
Telematics boxes serve multiple functions, including:
Feature | Description |
Vehicle Location Tracking | Uses GPS to provide real-time vehicle location, enabling fleet management. |
Driver Behavior Monitoring | Records driving patterns (speed, braking, acceleration) to assess behavior. |
Performance Metrics | Tracks vehicle health, fuel consumption, engine performance, and maintenance. |
Telematics devices also integrate onboard diagnostics (OBD-II), which link directly to the vehicle’s internal system. This integration helps in identifying any mechanical issues early, reducing the risk of breakdowns.
These devices are easy to install and don’t require any professional expertise. They typically plug directly into the vehicle’s OBD-II port. Once connected, the device automatically starts transmitting data to the fleet management system.
For more complex systems, professional installation might be required. These boxes may need to be integrated with the vehicle’s electrical system or be mounted in a specific location to ensure proper function.
Some vehicles come pre-installed with telematics devices directly from the manufacturer. These devices are fully integrated into the vehicle’s system, providing seamless data collection and management without the need for additional installations.
Before you begin installing your telematics box, it’s essential to gather the right tools and prepare your vehicle. Proper preparation ensures a smooth installation process, preventing unnecessary delays or mistakes.
To get started, you’ll need the following tools and equipment:
Telematics Box: The device itself, which will be installed in the vehicle.
Mounting Brackets: These hold the telematics box securely in place.
Power Cables: Essential for connecting the device to the vehicle’s power system.
Connectors: To ensure a secure electrical connection between the telematics box and the vehicle.
Digital Multimeter: Useful for testing voltage and checking the vehicle’s power circuits.
Screwdrivers and Wrenches: These may be required to remove panels or secure the device.
Having the right tools makes the installation quicker and safer. Missing or incorrect tools could delay the process, so double-check everything before starting.
Before installing the telematics box, follow these steps to ensure everything goes smoothly:
Turn Off the Ignition: Always start by ensuring the vehicle is turned off to avoid electrical shocks or system malfunctions.
Locate the OBD-II Port: The OBD-II port is where the telematics box connects to the vehicle’s system. It’s typically located under the dashboard, near the steering column. If you can’t find it, check the vehicle’s manual for guidance.
Clear the Area: Make sure the area around the OBD-II port is clear of any debris or obstacles. This allows for a clean connection and avoids damaging any internal components.
Choose the Right Installation Spot: Consider placing the device in a location where it won’t interfere with driving. Common spots include under the dashboard or near the steering column, ensuring it’s secure and doesn’t obstruct any vehicle controls.
Taking these steps will help set up your telematics box installation for success.
Installing a telematics box doesn’t have to be difficult. Follow these simple steps to ensure it’s connected and working properly.
The OBD-II port is the connection point for the telematics box. In most vehicles, you’ll find it under the dashboard, near the steering wheel. Some older models may have the port in less conventional spots like near the glove box or beside the fuse box.
To prepare for installation:
Locate the Port: Look carefully under the dashboard, typically near the driver’s side.
Clear Any Obstructions: If there are any panels or covers blocking access, carefully remove them using a screwdriver. Ensure the port is free of debris and easily accessible.
Now that you’ve located the OBD-II port, it’s time to connect the telematics box.
Align the Device: Insert the telematics box into the port. Ensure it fits snugly.
Use Bypass Connectors (if needed): Some telematics boxes require a bypass connector to allow the device to communicate with the vehicle’s system. If your device has one, attach it securely.
Secure the Connection: Once the device is plugged in, make sure it’s firmly connected to avoid any loose connections while driving.
To prevent the telematics box from becoming disconnected or damaged, it needs to be securely mounted.
Choose a Safe Location: Mount the device in a location that doesn’t obstruct the driver’s view or interfere with vehicle controls. Common spots include under the dashboard or near the center console.
Use Mounting Brackets or Adhesives: If your telematics box has mounting brackets or adhesive pads, use them to secure the device firmly in place.
Check for Stability: Make sure the device is not loose and won’t shift during driving.
After securing the device, it’s time to check if everything is working as expected.
Start the Vehicle: Turn the ignition on and check for any unusual dashboard lights that might indicate a problem.
Verify Data Transmission: If your telematics system has an app or dashboard, log in and check if the device is transmitting data. You should see real-time information like location and vehicle performance.
Once the installation is complete, it’s time to activate the telematics box.
Follow Registration Instructions: Each device will have its own registration process, which may involve downloading an app or visiting a website to create an account.
Activate the Device: Follow the prompts to activate your telematics device. This might involve entering a device ID or pairing the device with your vehicle.
Troubleshooting: If the device doesn’t activate, check for any connection issues or refer to the manufacturer’s troubleshooting guide. You may need to reconnect the device or ensure the vehicle’s system is compatible.
By following these steps, your telematics box will be installed and ready to provide valuable data for managing your vehicle or fleet.
Sometimes, despite following all the steps, your telematics box might not work as expected. Here are some common issues and their solutions to help you troubleshoot.
If your telematics box isn’t connecting to the vehicle system, check the following:
Check the OBD-II Port: Ensure the device is correctly plugged into the port. Sometimes, the connection may be loose, causing the device to not register.
Verify Compatibility: Ensure your telematics box is compatible with your vehicle’s make and model. Some older vehicles may require specific devices.
Inspect the Connection: If you’re using a bypass connector, make sure it’s securely attached. Loose connections are a common cause of connection issues.
Reset the Device: Try turning off the ignition, disconnecting the device, and reconnecting it. This can sometimes help the system recognize the device.
Power issues are another common cause of telematics box malfunctions. Here’s how to address them:
Check Power Cables: Ensure that the power cables are properly connected to the vehicle’s power supply. Look for any loose wires or damaged connectors.
Test the Voltage: Use a digital multimeter to check the vehicle’s power circuits. Ensure they’re providing the correct voltage for your telematics box.
Secure the Wiring: Make sure the power cables are not loose or tangled. Secure them to avoid interference or accidental disconnection.
If your telematics box is not transmitting data or the signal is weak, try these tips:
Positioning the Device: Ensure the telematics box is installed in an area with good signal reception. Avoid placing it near metal parts or under covers that can block the signal.
Adjust the Device Location: If the device is mounted under the dashboard or behind a panel, try moving it to a more open area. The best positions are near the windshield or the center console.
Secure the Device: Ensure the telematics box is securely mounted. Loose devices can shift during driving, impacting signal strength.
These troubleshooting tips can help resolve common issues and get your telematics box up and running smoothly.
Q: How Long Does Telematics Box Installation Take?
A: Installation typically takes 10-30 minutes for a plug-and-play device if you’re doing it yourself. Professional installations may take 1-2 hours, depending on the vehicle and device complexity.
Q: Can I Transfer My Telematics Box to Another Vehicle?
A: Yes, most telematics boxes can be transferred by simply unplugging the device from one vehicle’s OBD-II port and installing it in another. Some devices may require re-registration or a new activation process.
Q: Can Telematics Box Installation Affect My Vehicle’s Warranty?
A: DIY installation may void warranties if the installation causes damage. Professional installation ensures the device is installed correctly without impacting the vehicle’s warranty.
Installing a telematics box involves locating the OBD-II port, connecting the device, and securing it in place. Proper installation is crucial for accurate data collection and vehicle performance.For businesses and fleet managers, using telematics devices enhances vehicle management, improves safety, and reduces operational costs. It’s a valuable tool for optimizing fleet efficiency.
